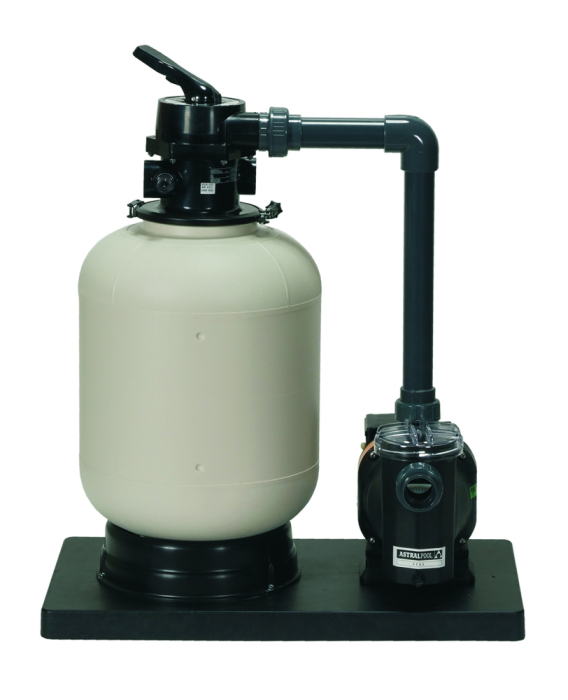

Sand filter unit Corona Star

Name: Sand filter unit Corona Star
SKU: 041030
Availability: OutOfStock

041030

Art.

Circulation power approx. 11.000 l/h
Self-priming pump with pre-filter
6 way valve with pressure gauge
Requires approx. 50 kg sand
For pools up to 55,000 l capacity

Sold Out

The selected product is currently not available. As soon as the product is on stock, we will send you an E-mail.

Mr Mrs

Firstname

Lastname

E-mail *

Find our Privacy Policy here.

* Mandatory Field

From € 49,- free shipping

Return free of charge

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product information

Description

Powerful sand filter unit for all swimming pool types up to 55,000capacity.

Key data:

Circulation power approx. 11.000 l/h
Self-priming pump with pre-filter
Maximum water temperature 35 °C
230 V / 380 W
6 way valve with pressure gauge
Boiler Ø 400 mm
Connector Ø 38 mm
Ground plate
Requires approx. 50 kg sand
Recommended grain size 0.7 - 1.2 mm
For pools up to 55,000 l capacity

Technical Informations

Filter system:
Salt water suitable: yes
Water capacity:
Circulation capacity: 11.000 l/h
Boiler size:
Connection size:
Valve type: 6-way valve with pressure gauge
*Sound pressure level: <
Water temperature:
Usable filter medium 1:
Quantity of filter medium 1 used:
Sand grain size:
Usable filter medium 2:
Quantity of usable filter medium 2:
Pump part number:

Filter pump:
Power supply: 220-240V~ / 50Hz
Pump power: 380 W
Transformer:
Pump power:
Operating principle:
Head:
Pre-filter: yes
Timer present: no
Protection class:
Insulation class:
Cable length to unit:

* Emission sound level comparable to a large household appliance
